High Pressure Tube Replacement Instruction
Problem description

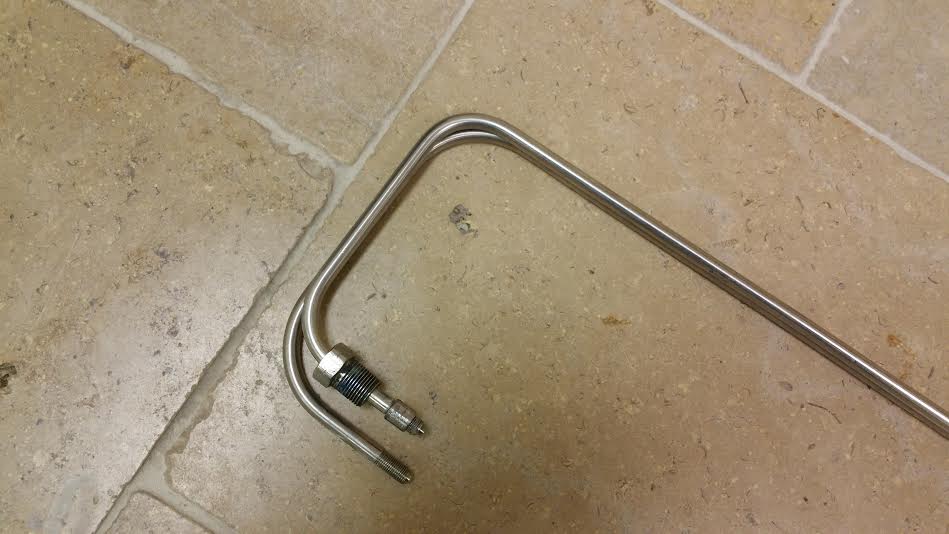

When changing HP (High Pressure) tubes, due to the differences between tube models, you may need to adjust the position of the intensifier so the new tube can fit.
Solution
1. Find the 4 screws under the intensifier.
2. Loosen them and adjust the position of the intensifier.
3. Replace the new high pressure tube and tighten the 4 screws.
For more details, please see the instructions in the attachment.
